The Core Component of a rotary dehumidifier, is the Desiccant Wheel. The surface of the rotary wheel is 3A molecular sieve(or active silica gel), which with a high moisture transfer capability.

Both sides of the wheel are divided by purpose-made sealing device into 2 zones--Treatment Area and Regenerative Area.

- When moist air goes through Treatment Area, the vapor of moist air is absorbed by 3A molecular sieve (or active silica gel), while dry air is sent to anther area by the fan;

- Slowly rotating wheel carries nearly saturated water vapor into Regenerative Area;

- In the Regenerative Area, the water vapor is desorbed by reversely injected high-temperature air, and discharged out of the room by the fan.

- In this way, the wheel restores dehumidifying capability, and completes the regeneration process.

- As the wheel rotates consistently, above dehumidification and regeneration repeat continuously, and the rotary dehumidifier maintains its continuous and stable dehumidifying state.

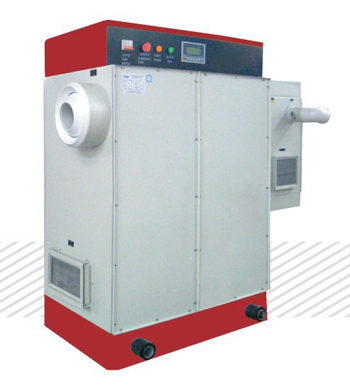

Modular Rotary Dehumidifier Unit:

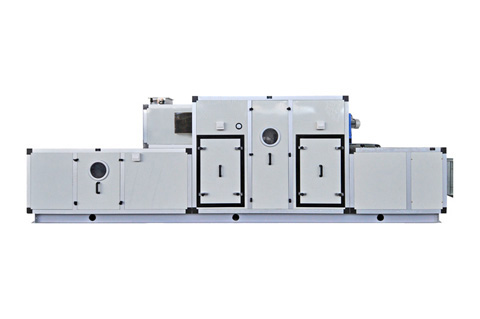

Pharmaceutical Dehumidifier Unit:

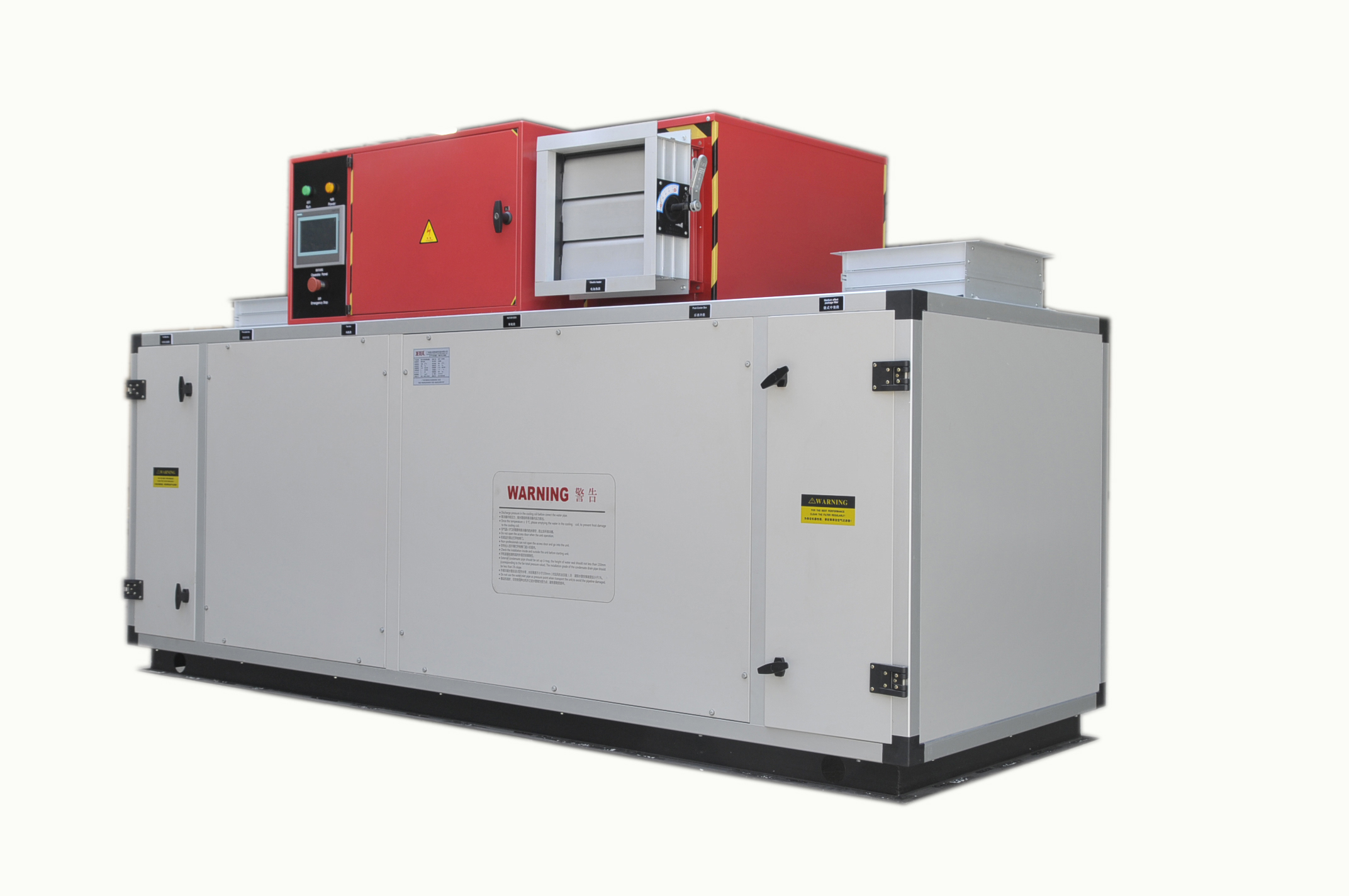

Painting Room Dehumidifier Unit:

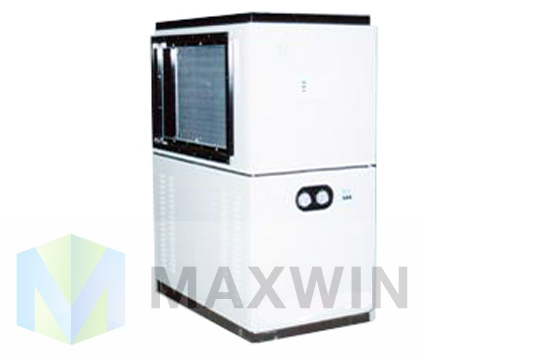

Marine Dehumidifier Unit:
